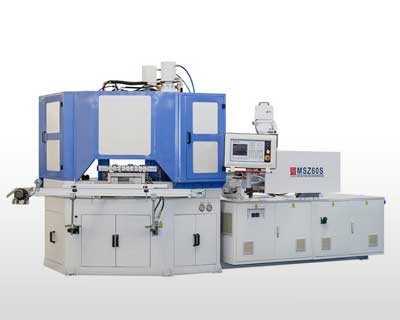

MSZ60S Injection Blow Molding Machine
Special designed dual-cylinder clamping unit,mould open and close fast,idle cycle time fast,efficiency high.
Dual proportional hydraulic system,precision control,energy saving 25% more than vane pump drive.
Horizontal injection design,plasticating reliable and operation easy.
Single crossbeam style clamping system,easy for mould amounting
Servo pump drive, 25%-45% energy saving is available.
In mold labeling solution, one stop procedure, save cost of labor and workshop, completely fitting and excellent appearance.
- Clamping parts: special designed single crossbeam dual-cylinder balance clamping system, for fast opening and closing mold while ensuring uniform distribution
- Rotation mechanism: unique rotating mechanism design, and equipped with automatic lubrication system，ensure rotation precision be consistent.
- Injection components: Alternative efficient plasticizing mixing screw, optimization of the injection unit，improve the injection stability and accuracy in ensuring
- Hydraulic system: Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%
- Rotation mechanism: unique rotating mechanism design, and equipped with automatic lubrication system，ensure rotation precision be consistent.
This machine has used the European standard injection blowing mode, which has absorbed the advantages of domestic injection.
1. It is one step injection blowing machine, the raw material is PP/PE/PS pellets, no need preforms.
2. One Mold with Multi-caivity based on your required bottle size, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation.
3. Compared with the blow molding machine, the quality of the bottle neck made by thus machine is better, and it no need waste raw material.
4. Close mould cylinder, ensure product cleaning. The clamping force of the clamping force on the internalbalance, uniform.
5. Decreased the Machine height for easy assemble the mold.
6. Unique hydraulic servo system, reasonable layout of the pipeline, so that the machine is running high efficiency and energy saving.
7. The unique structure of the boost lock structure increases the clamping force and reduces the energy consumption of the system.
8. With servo system to control the mold rotary & increase rotary accurancy and reduce the dry cycle time.
Special double cylinder horizontal valve plate superimposed injection system, so that the injection, storage more smooth and fast, beautiful appearance, Special plastic components, to meet the requirements of different products, multi-level injection, pressure projection.
9. Internal layout optimization, equipment maintenance,maintenance more convenient.
10. Release the digital sensor detection, and increase the mandrel rotary detection function, realize the unattended, automatic operation.
11. Optional air conditioning mandrel function, shorten the product cooling cycle,solve the problem of sticking mandrel.
12. The conveyor belt can be connected with the visual inspection, Leakage Thester labeling and other equipment.
| Injection system | Unit | MSZ60S | |
| Screw Diameter | mm | 50 | 55 |
| Screw L/D | L/D | 23:1 | 23:1 |
| Injection weight(HDPE) | g | 298 | 360 |
| Max.screw speed | rpm | 10-235 | |
| Heating capacity | KW | 10.8 | |
| Clamping system | |||
| Clamping force of injection | KN | 750 | |
| Clamping force of blowing | KN | 89 | |
| Max.Platen size(L*W) | mm | 740×390 | |
| Min.Mold thickness(H) | mm | 280 | |
| Heating capacity of mould | KW | 6 | |
| Stripping system | |||
| Stripping stroke | mm | 200 | |
| Dry cycle | sec | 3.5 | |
| Driving system | |||
| Motor power | KW | 30 | |
| Hydraulic pressure | Mpa | 15 | |
| Product range | |||
| Suitable bottle range | ml | 5-800 | |
| Max.bottle height | mm | ≤200 | |
| Max.Dia.of bottle | mm | ≤100 | |
| Others | |||
| Min.Air pressure | Mpa | 1.0 | |
| Discharge rate of compressed air | M³/min | ≥0.8 | |
| Water flowage | M³/h | 5 | |
| Total rated power with mold heating | KW | 46.8 | |
| Dimension(L*W*H) | M | 4.3×1.69×2.45 | |
| Net weight | ton | 8.6 | |
